Thermal Solution for Laser
Lasers: Rising Power and Thermal Limits
As laser power keeps rising, pump sources generate extremely high heat flux. Heat easily builds up inside compact sealed housings due to limited cooling paths, causing hotspots that degrade laser output stability and service life. Thermal management has become a key challenge for laser R&D and manufacturing.
Laser pump source
laser pump source
Driver chip heat-generating components
Application Pain Points
☑ High heat flux of pump sources
☑ Space limitation in sealed housing
☑ Thermal cycling stress risk
☑ Low outgassing for optics protection
☑ High narrow-gap filling requirement
☑ Automated assembly & cost control
Techinno Thermal Management Solution
▏Recommended Product

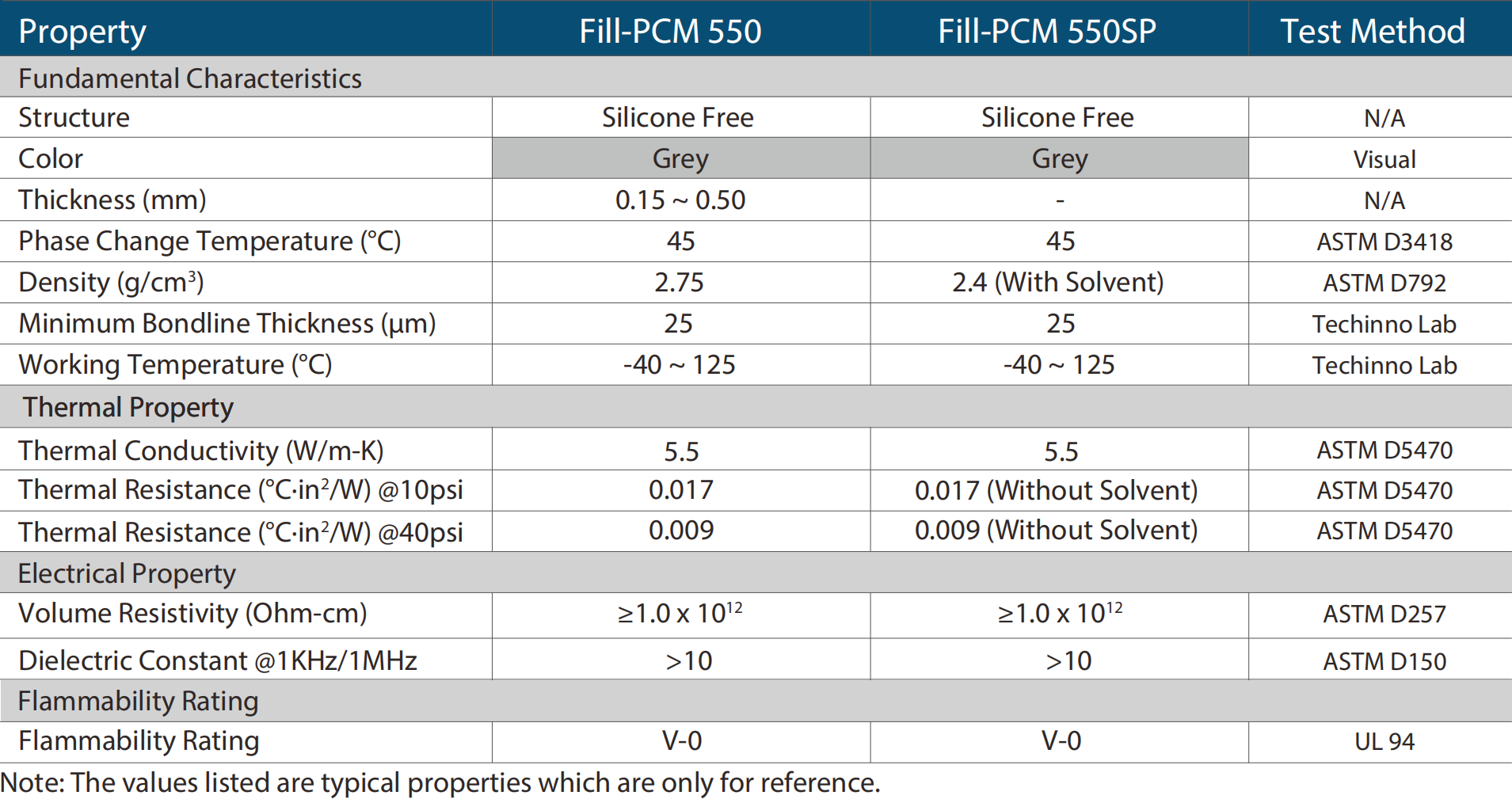

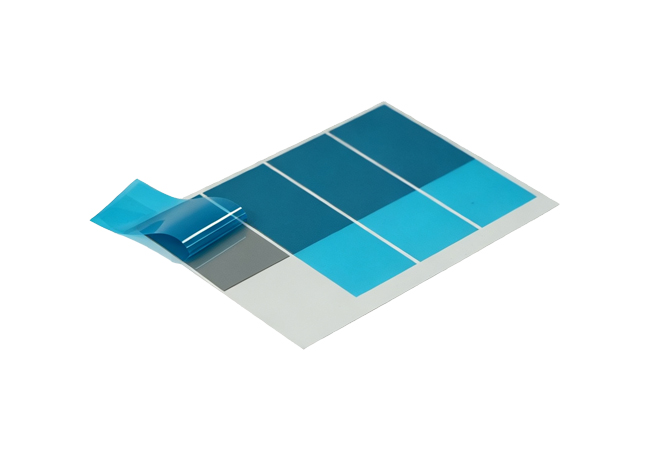

Thermally Conductive Phase Change Material: Fill-PCM 550SP
Key Features
☑ High thermal conductivity & ultra-low thermal resistance
☑ Silicone-free base, no silicone contamination
☑ Self-adhesive surface
☑ Long-term high reliability
☑ High thixotropy, no oozing under pressure
▏Product Structure Diagram
Sample Application/ Price Inquiry
For technical information / catalogue / application directions, please visit download center
