Pluggable Material
T-Plug 800S
☑ Resistance to plug/unplug wear and tear
☑ Low interfacial thermal resistance
☑ Good insulation
☑ High reliability
☑ Good reworkability

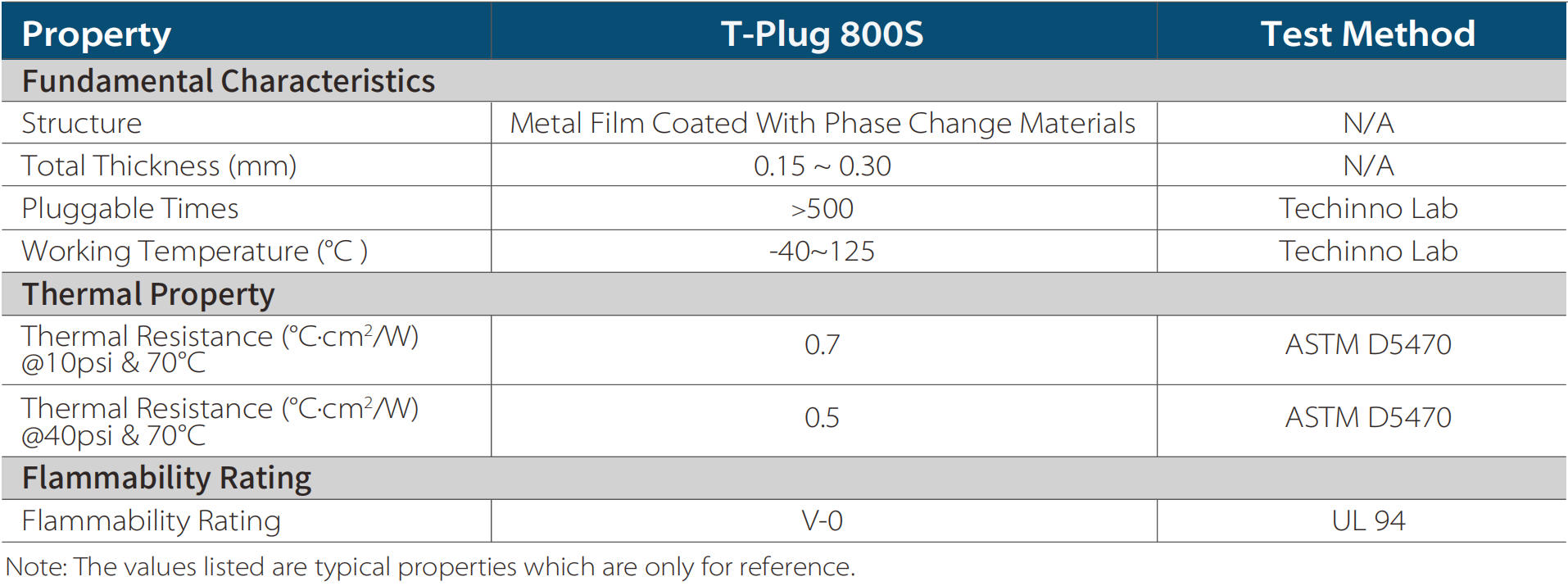

Datasheet
FAQ
- What is T Plug 800S?
T‑Plug 800S is multi‑pluggable composite TIM, metal‑film substrate coated with high‑performance phase‑change material. Anti‑plug‑wear, low interface thermal resistance, good insulation and reworkability. Pluggable cycles＞500 times. Working temperature:‑40℃ ~ 125℃, UL94 V‑0.
- What applications is T Plug 800S suitable for?
It applies to removable 5G datacom modules and hot‑pluggable optical modules.
- What are its main key parameters?
Metal‑film + phase‑change composite; total thickness 0.15‑0.30mm; pluggable cycles＞500; thermal resistance 0.7℃・cm²/W@10psi‑70℃ / 0.5℃・cm²/W@40psi‑70℃.
- What are ordering specifications and storage conditions?
Supplied in sheet form, custom cut‑parts available. Sealed store at 0‑35℃, ≤65% RH, shelf‑life 12 months. Refer to MSDS (SDS) for safety instructions.
