Thermally Conductive Phase Change Material
Fill-PCM P200
☑ Extremely low thermal resistance
☑ Silicone free, no silicone contamination
☑ High insulation
☑ High puncture resistance
☑ Good reworkability
☑ High reliability
Datasheet
FAQ
- What is Fill PCM P200?

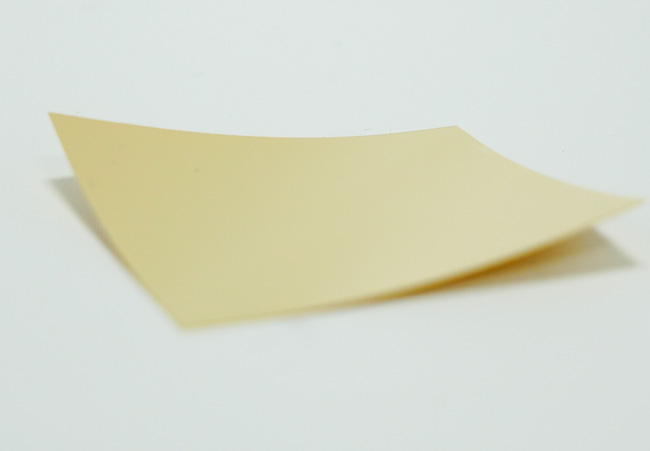

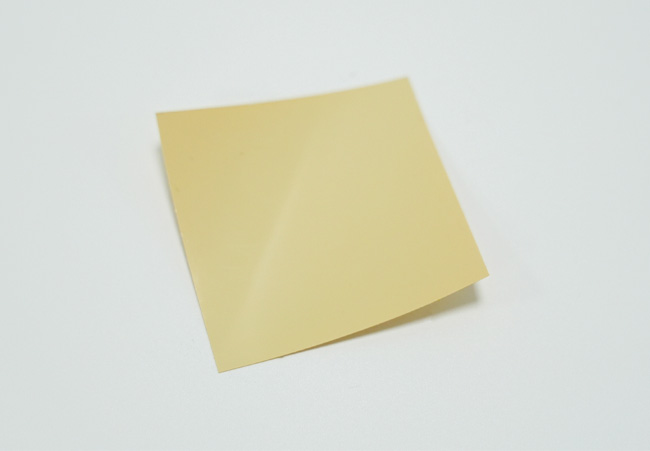

Fill‑PCM P200 is silicone‑free thermal phase‑change composite, double‑side PCM coated on polyimide substrate. Thermal conductivity 2.0W/m・K, phase‑change temperature 52℃. Features high insulation and puncture resistance, good reworkability & reliability. Working temperature:‑50℃ ~ 150℃, UL94 V‑0.
- What applications is Fill PCM P200 suitable for?
It applies to power semiconductors & modules, automotive electronics, graphic chips and memory devices. Standard sizes fit TO‑220, TO‑247, TO‑3P, TO‑3PL, TO‑264 packages.
- What are its main key parameters?

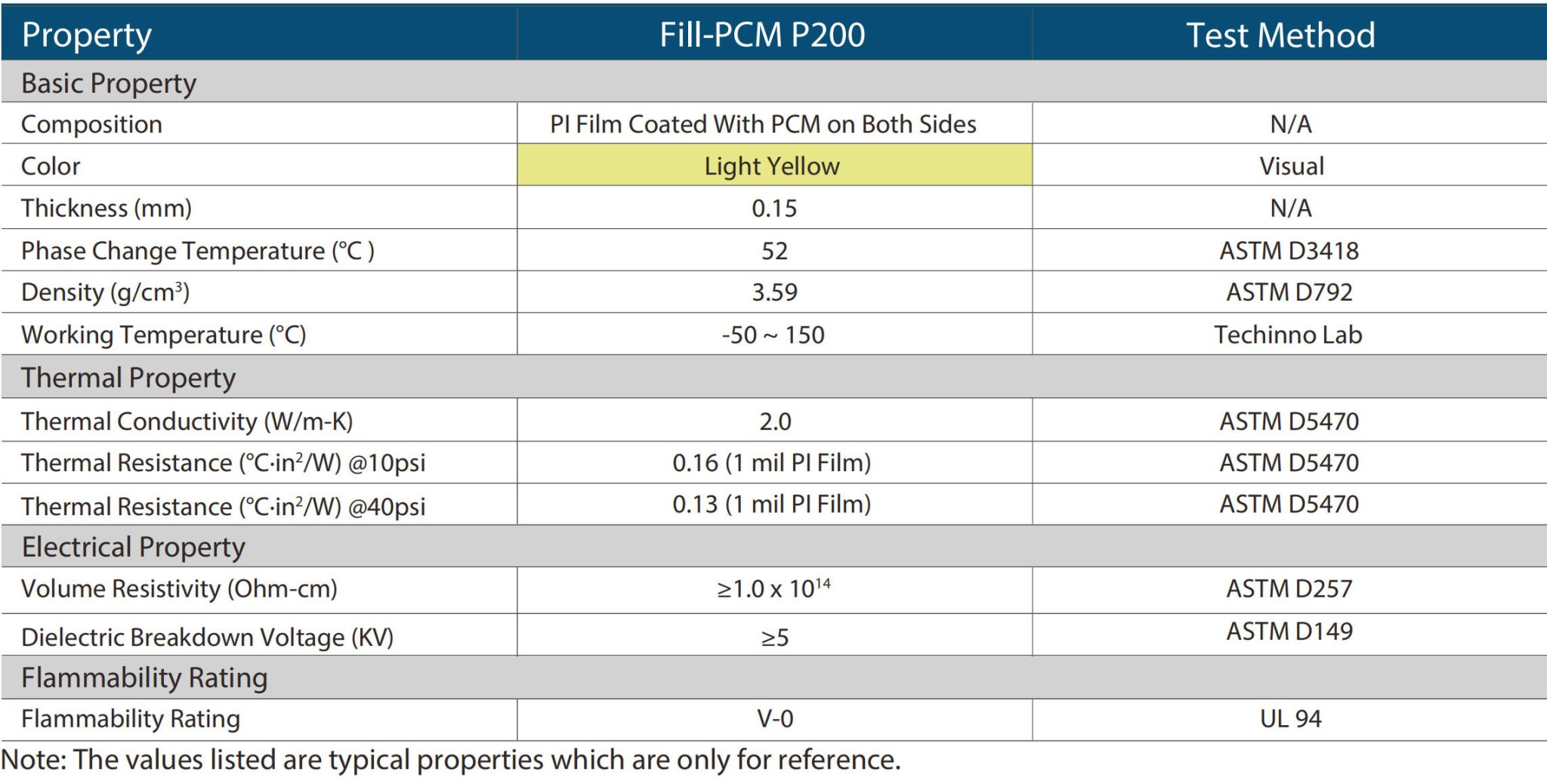

Light‑yellow color; total thickness 0.15mm; phase‑change temperature 52℃; density 3.59g/cm³; thermal resistance 0.16@10psi / 0.13℃・in²/W@40psi; volume resistivity ≥1.0×10¹⁴Ω・cm; dielectric breakdown voltage ≥5kV.
- What are ordering specifications and storage conditions?
Forms: sheet, roll, die‑cut parts; custom size ≤400400mm, standard semiconductor package sizes available. Store at 15‑35℃, ≤65% RH, shelf‑life 12 months. Refer to MSDS (SDS) for safety instructions.
