Thermally Conductive Energy Storage Material
Fill-ESM 130
☑ Phase change latent heat ≥130J/g
☑ Breakdown Voltage ≥10kV/mm
☑ Thermal conductivity: 1.0W/m-K
☑ Custom-shape cut parts are available
☑ Moderate surface hard

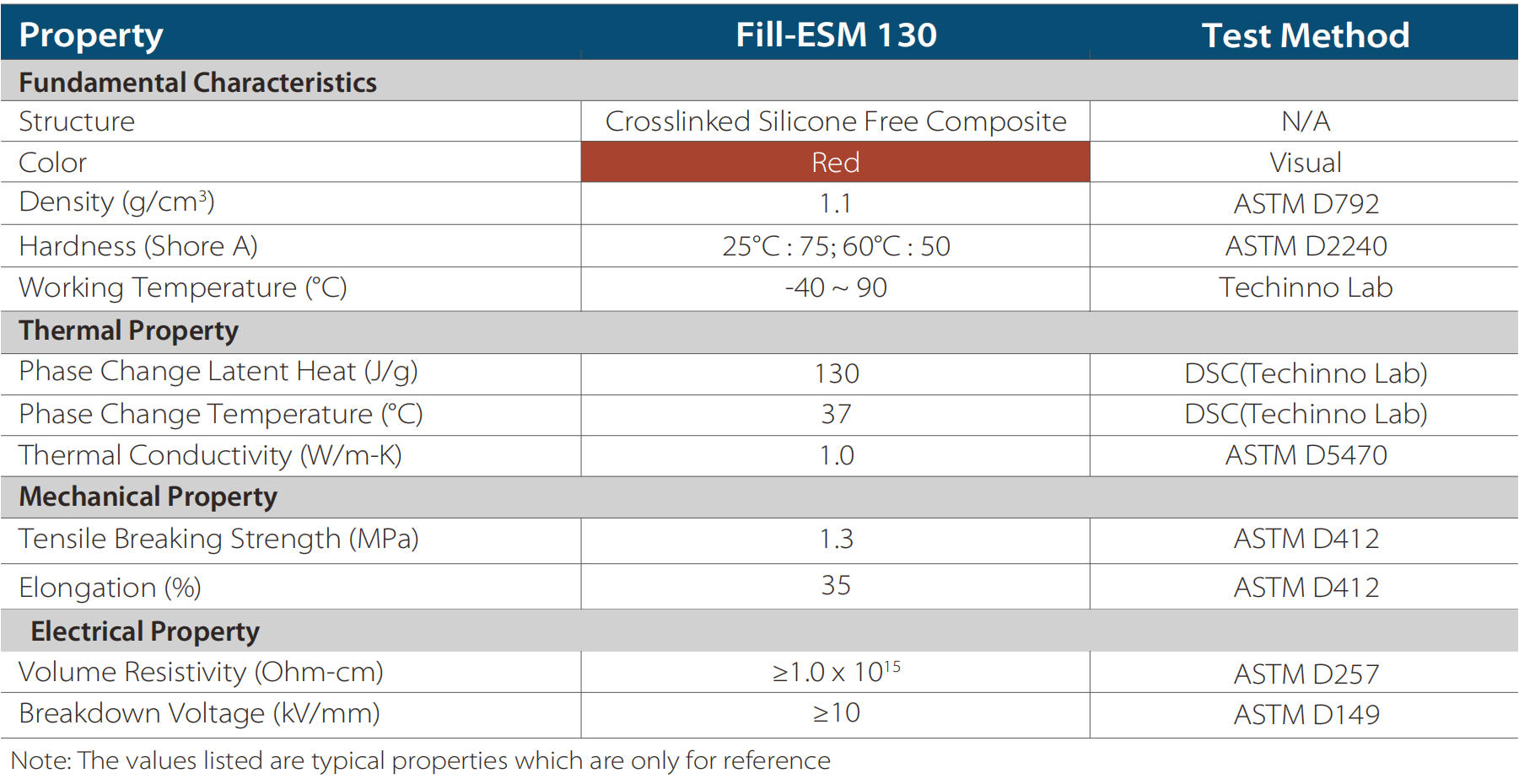

Datasheet
FAQ
- What is Fill ESM 130?
Fill‑ESM 130 is cross‑linked licone‑free phase‑change composite material. Thermal conductivity 1.0W/m・K, latent heat ≥130J/g, phase‑change temperature 37℃. Good insulation & mechanical performance for heat absorption‑storage‑release. Working temperature:‑40℃ ~ 90℃.
- What applications is Fill ESM 130 suitable for?
It applies to battery thermal management, wearable devices, medical instruments and heat‑recovery utilization scenarios.
- What are its main key parameters?
Red color; density 1.1g/cm³; Shore A hardness:75@25℃,50@60℃; tensile strength 1.3MPa, elongation 35%; volume resistivity ≥1.0×10¹⁵Ω・cm; breakdown voltage ≥10kV/mm.
- What are ordering specifications and storage conditions?
Custom thickness & special‑shaped parts available; phase‑change temperature can be customized. Store at 0‑35℃, ≤65% RH, shelf‑life 12 months. Refer to MSDS (SDS) for safety instructions.
