Thermally Conductive Energy Storage Material
Fill-ESM 180
☑ Phase change latent heat ≥180J/g
☑ Breakdown Voltage ≥10kV/mm
☑ Thermal conductivity: 0.3W/m-K
☑ Custom-shape cut parts are available
☑ Moderate surface hardness with reduced interfacial thermal resistance

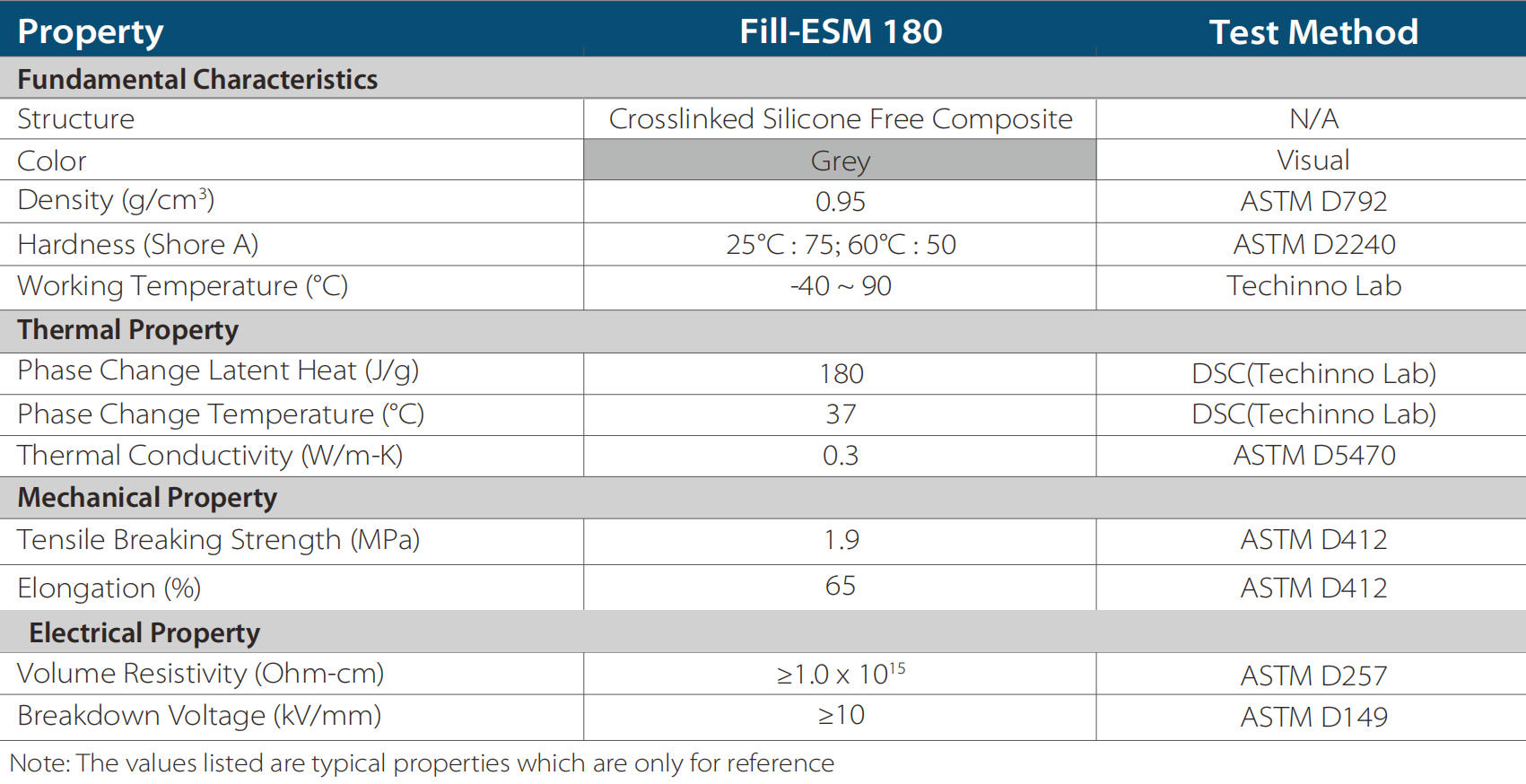

Datasheet
FAQ
- What is Fill ESM 180?
Fill‑ESM 180 is cross‑linked silicone‑free phase‑change composite material. Thermal conductivity 0.3W/m・K, latent heat ≥180J/g, phase‑change temperature 37℃. Excellent insulation and mechanical performance for heat absorption‑storage‑release. Working temperature:‑40℃ ~ 90℃.
- What applications is Fill ESM 180 suitable for?
It applies to battery thermal management, wearable devices, medical instruments and heat‑recovery utilization scenarios.
- What are its main key parameters?
Grey color; density 0.95g/cm³; Shore A hardness:75@25℃,50@60℃; tensile strength 1.9MPa, elongation 65%; volume resistivity ≥1.0×10¹⁵Ω・cm; breakdown voltage ≥10kV/mm.
- What are ordering specifications and storage conditions?
Custom thickness & special‑shaped parts available; phase‑change temperature can be customized. Store at 0‑35℃, ≤65% RH, shelf‑life 12 months. Refer to MSDS (SDS) for safety instructions.
