Cured in Place Gap Filler
Fill-CIP 260
☑ Thermal conductivity: 6.0W/m-K
☑ Easy for auto-dispensing
☑ Low viscosity and good wetting
☑ Good thixotropic
☑ High compressibility for low stress applications
☑ Good long-term reliability
☑ Excellent collapse resistance and high shear thinning characteristics
Datasheet
FAQ
- What is Fill CIP 260?
Fill‑CIP 260 is 1:1 two‑component cure‑in‑place liquid gap filler, thermal conductivity 6.0W/m・K. Low viscosity, good thixotropy, shear‑thinning & anti‑collapse for auto‑dispensing; room‑temperature curable, heat accelerates curing. Low‑stress with outstanding long‑term reliability. Working temperature:‑50℃ ~ 200℃, UL94 V‑0.
- What applications is Fill CIP 260 suitable for?
It applies to automotive electronics & batteries, industrial‑LED lighting, power modules, large‑capacity data centers, consumer electronics and telecommunication equipment.

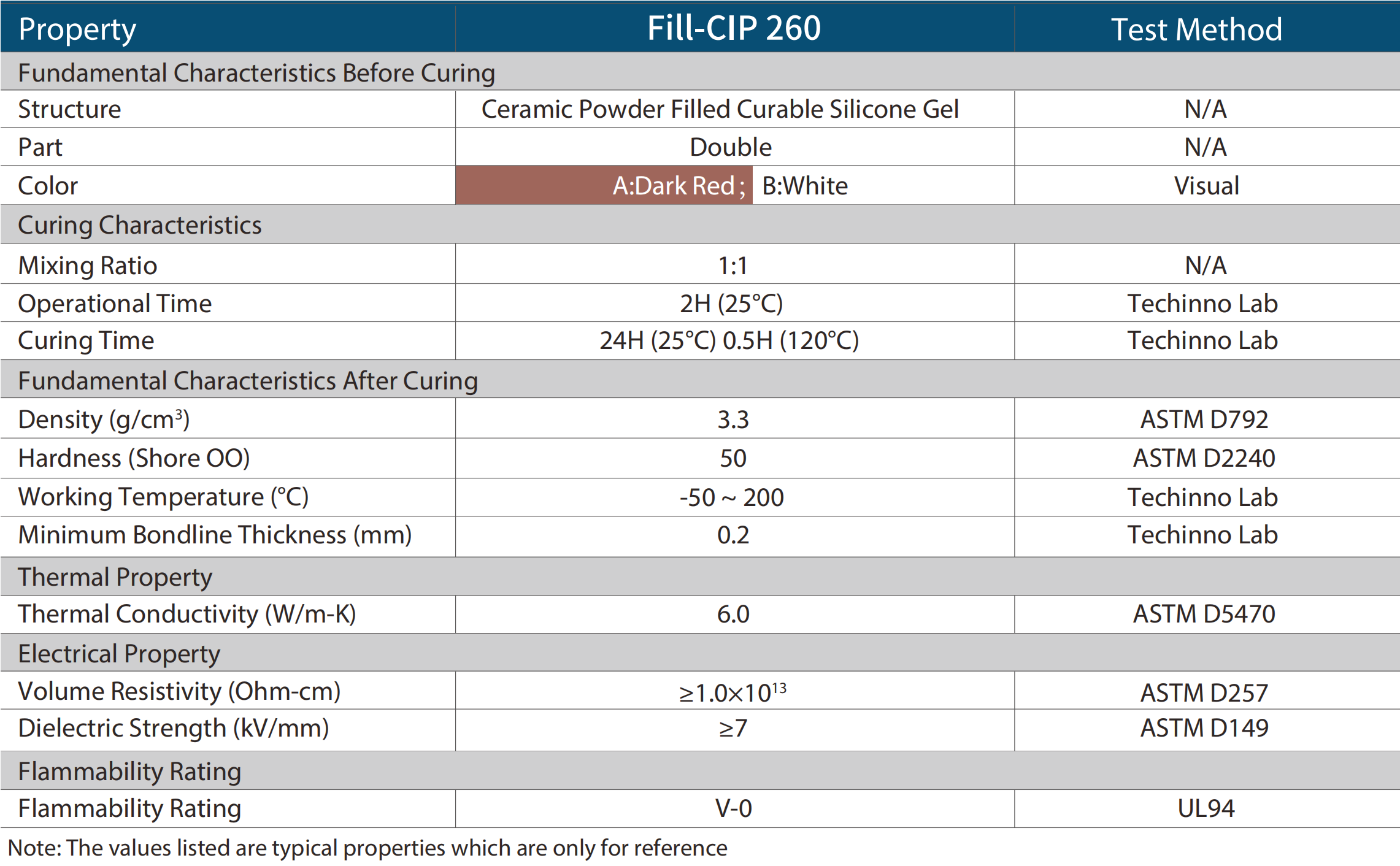

- What are its main key parameters?
A:Dark Red, B:White; mix ratio 1:1; pot‑life 2h@25℃; cure 24h@25℃ / 0.5h@120℃; post‑cure density 3.3g/cm³, hardness 50 Shore OO; min bondline 0.2mm; dielectric strength ≥7kV/mm; volume resistivity ≥1.0×10¹³Ω・cm.
- What are package and storage conditions?
Packages:25cc2, 200cc2, 600cc2 cartridge, 5‑gallon pail; fast/slow cure versions optional. Seal‑store 0‑35℃, ≤65% RH, shelf‑life 6 months. Refer to MSDS (SDS) for safety instructions.
