Curable Thermally Conductive Gel
Fill-CIP 245LV
☑ Thermal conductivity: 4.5W/m-K
☑ Easy for auto-dispensing
☑ Low viscosity and good wetting
☑ Low volatiles, Low siloxanes
☑ High compressibility for low stress applications
☑ Good long-term reliability
Datasheet
FAQ
- What is Fill CIP 245LV?

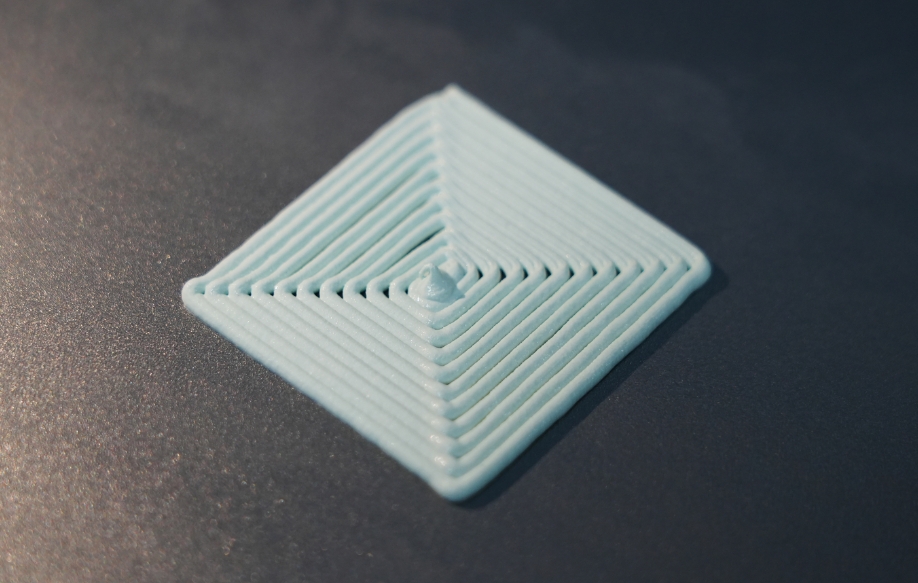

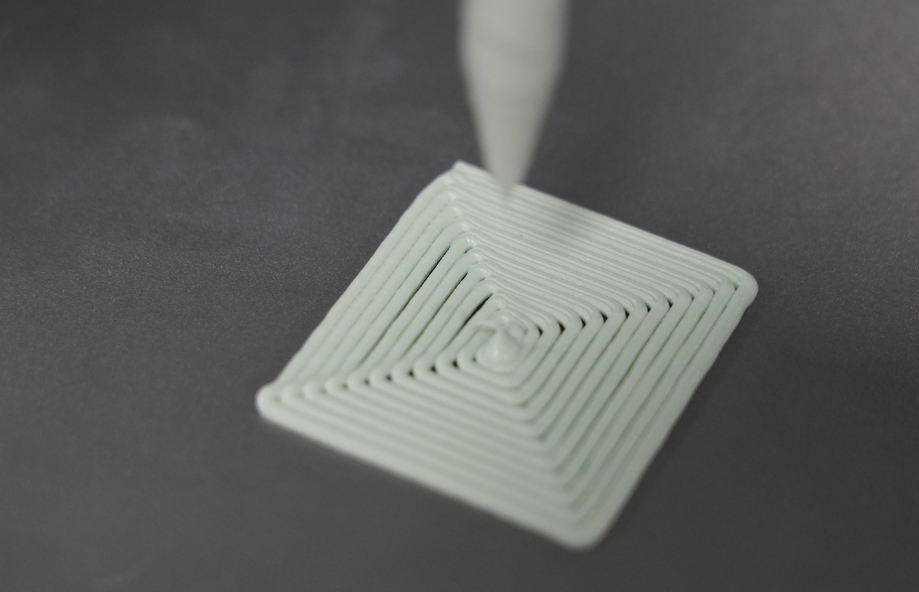

Fill‑CIP 245LV is low‑volatile 1:1 two‑component cure‑in‑place liquid gap filler, thermal conductivity 4.5W/m・K. Low‑viscosity with good thixotropy for auto‑dispensing; room‑temperature curable, heat accelerates curing. Low‑siloxane, low‑stress, ideal for outgassing‑restricted optical devices.
Working temperature:‑50℃ ~ 200℃, UL94 V‑0.
- What applications is Fill CIP 245LV suitable for?
It applies to automotive electronics & batteries, industrial‑LED lighting, power modules, large‑capacity data centers, consumer electronics and telecommunication equipment including optical devices.
- What are its main key parameters?

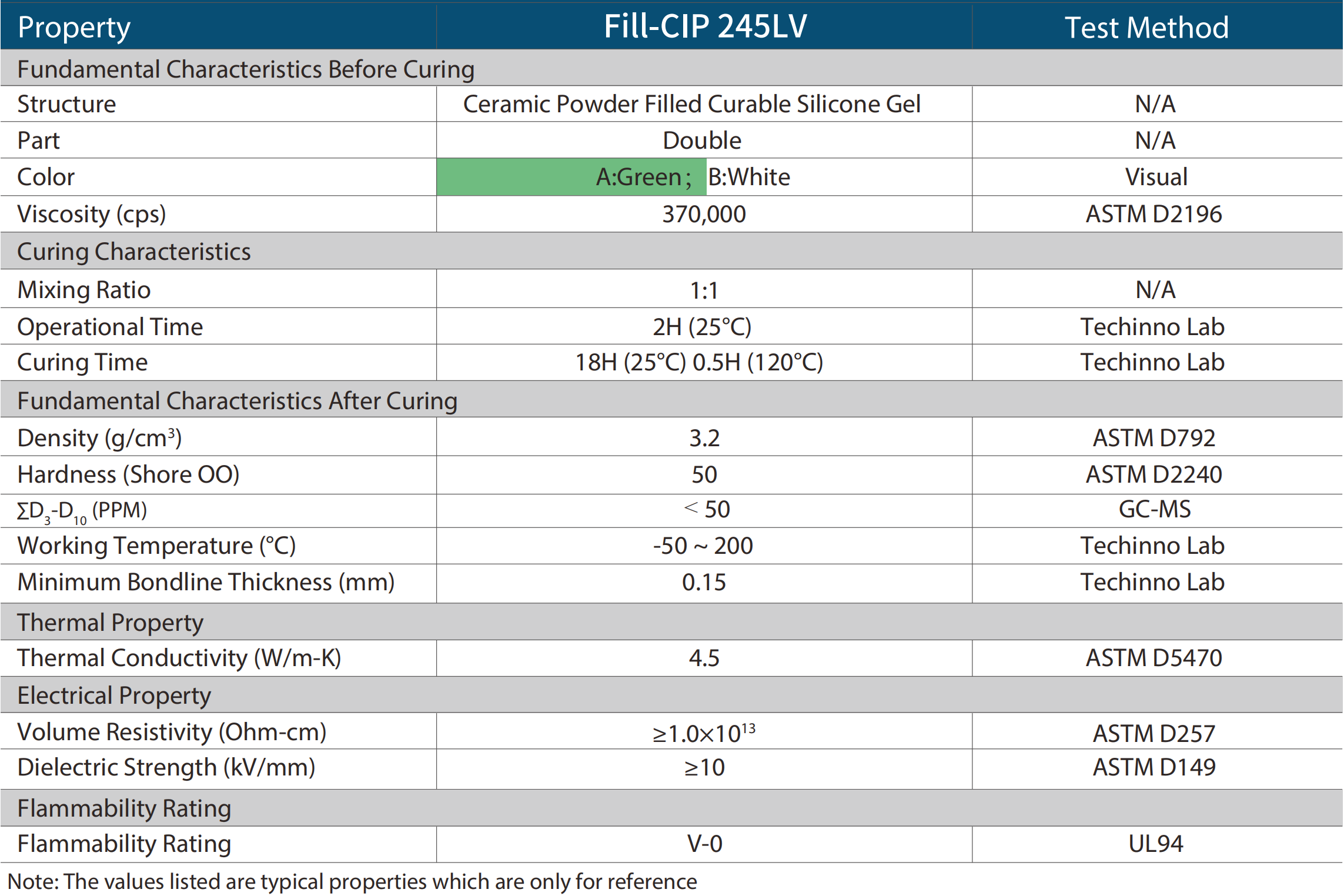

A:Green, B:White; mix ratio 1:1; pot‑life 2h@25℃; cure 18h@25℃ / 0.5h@120℃; post‑cure density 3.2g/cm³, hardness 50 Shore OO; ∑D₃‑D₁₀＜50 ppm; min bondline 0.15mm; dielectric strength ≥10kV/mm; volume resistivity ≥1.0×10¹³Ω・cm.
- What are package and storage conditions?
Packages:25cc2, 200cc2, 600cc2 cartridge, 5‑gallon pail; fast/slow cure versions optional. Seal‑store 0‑35℃, ≤65% RH, shelf‑life 6 months. Refer to MSDS (SDS) for safety instructions.
