Thermally Conductive Grease
Fill-Grease 300I
☑ Ultra-low thermal resistance
☑ Ultra-low BLT with a minimum of 7 μm

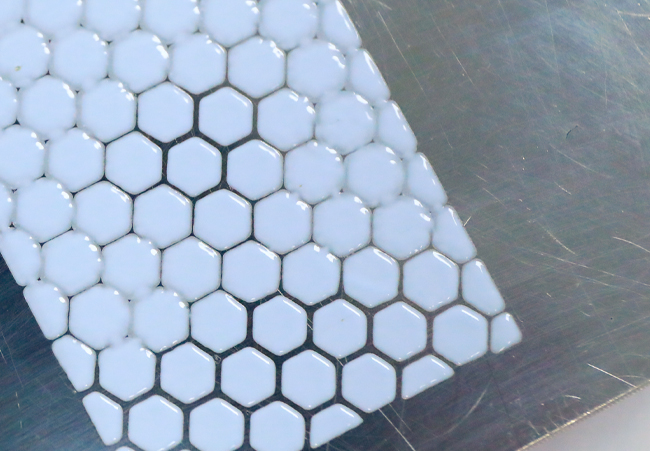

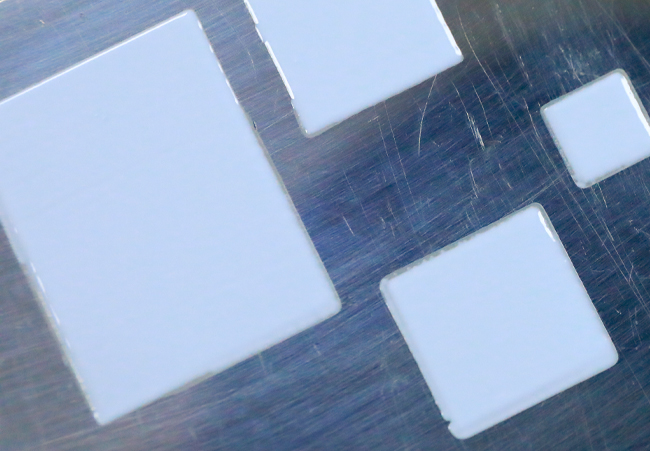

☑ Low viscosity, easy to use for fast and large area screen printing
☑ Thermal Conductivity: 3.0W/m-K
☑ Solventless formulation with no metal powder
Datasheet
FAQ
- What is Fill Grease 300I?
Fill‑Grease 300I is silicone‑based oxide‑filled thermal grease, thermal conductivity 3.0W/m・K. Solvent‑free, no metal powder, min BLT down to 7μm for ultra‑low thermal resistance. Supports screen/stencil printing & dispensing; non‑drying, no settling or hardening. Working temperature:‑40℃ ~ 150℃, UL94 V‑0.
- What applications is Fill Grease 300I suitable for?
It applies to cooling modules, CPU/GPU/chipset, LED lighting, Northbridge chips, custom ASICs and IGBT modules.
- What are its main key parameters?

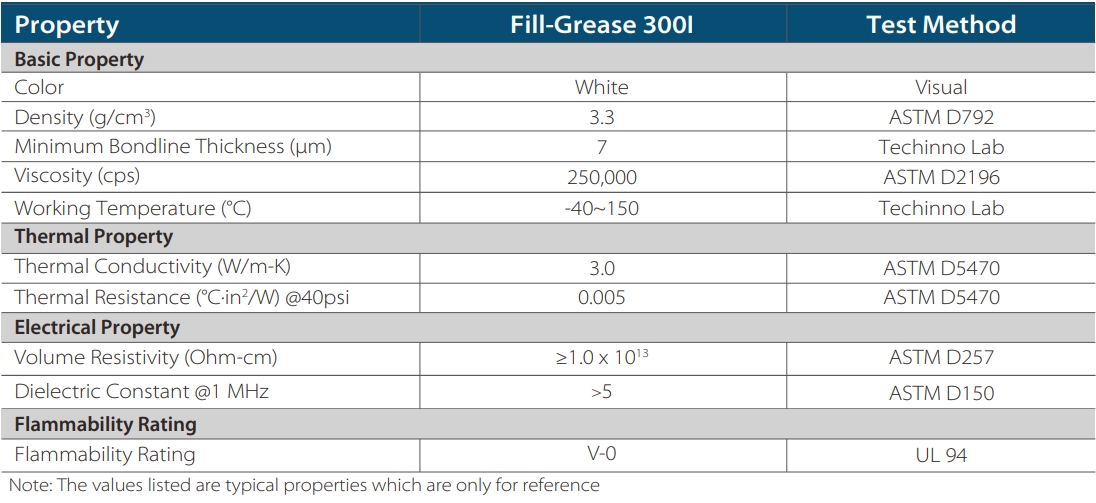

White color; density 3.3g/cm³; viscosity 250,000 cps; min bondline 7μm; thermal resistance 0.005℃・in²/W@40psi; volume resistivity ≥1.0×10¹³Ω・cm; dielectric constant＞5@1MHz.
- What are package and storage conditions?
Packages:30cc/50cc cartridge, 300cc aluminum tube, 1kg jar, 5‑gallon pail. Seal‑store 20‑35℃, ≤65% RH, shelf‑life 12 months. Refer to MSDS (SDS) for safety instructions.
