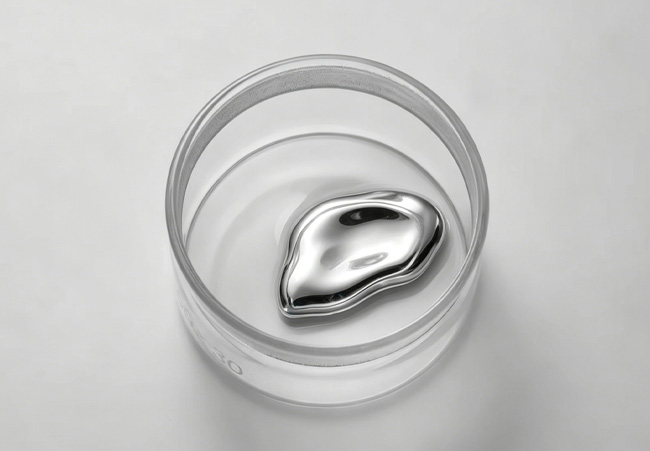

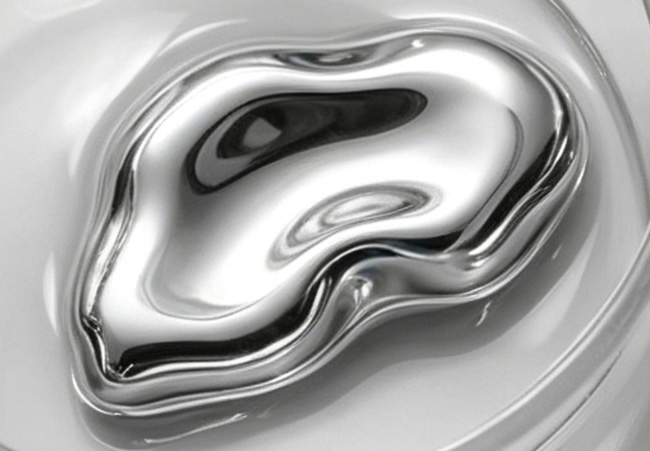

Liquid Metal
Fill-LM 2500
☑ High thermal conductivity
☑ Ultra-low thermal resistance
☑ Low viscosity
☑ Non-volatile, high temperature tolerance
☑ Chemically stable and high reliability
Datasheet
FAQ
- What is Fill LM 2500?
Fill‑LM 2500 is room‑temperature‑liquid gallium‑based alloy, thermal conductivity 25.0W/m・K. Low viscosity for excellent gap‑filling, ultra‑low interface thermal resistance, non‑volatile, chemically stable and good reworkability. Working temperature:‑40℃ ~ 150℃.
- What applications is Fill LM 2500 suitable for?
It applies to CPU/GPU chipset, high‑performance laptops, game consoles, consumer electronics, workstations and servers.
- What are its main key parameters?
Bright‑silver color; gallium‑based alloy; density 6.0g/cm³; thermal conductivity 25.0W/m・K; thermal resistance 0.02℃・cm²/W@40psi; volume resistivity 1.2×10⁻⁷ Ω・m; liquid form at room temperature.
- What are ordering specifications and storage conditions?
Packages: 55g, 500g tank. Refer to MSDS (SDS) for safety & storage‑shelf‑life instructions.
