Pluggable Material

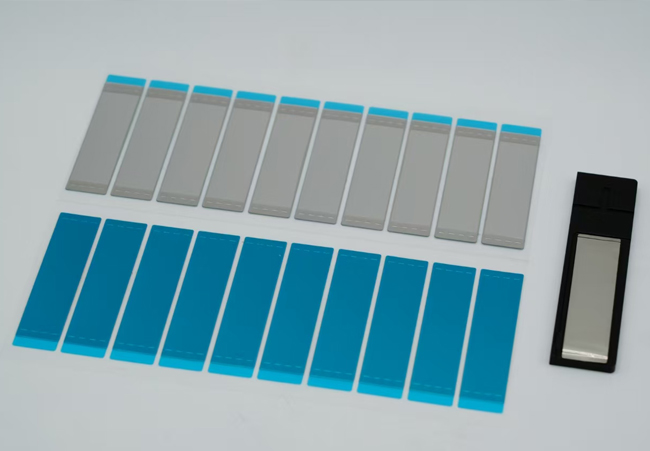

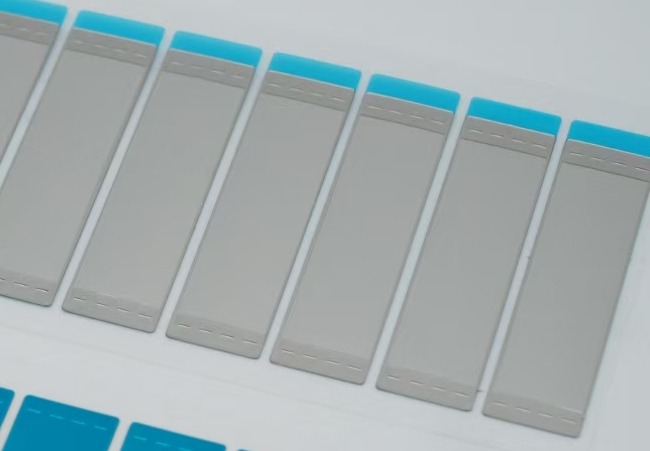

T-Plug 820S
☑ Tear resistance to plug in & out
☑ Low interfacial thermal resistance
☑ High reliability
☑ No leakage without containment measures
Datasheet
FAQ
- What is T Plug 820S?
T‑Plug 820S is pluggable thermal conductive composite TIM, constructed of stainless‑steel film carrier + cross‑linked silicone pad + PSA adhesive. Anti‑wear during plug‑unplug, no material leakage, low interfacial thermal resistance, good reworkability. Pluggable cycles＞500 times. Working temperature:‑40℃ ~ 150℃, UL94 V‑0.
- What applications is T Plug 820S suitable for?
It applies to removable 5G datacom modules and hot‑pluggable optical modules.
- What are its main key parameters?
SUS+Silicone Pad+PSA composite; total thickness 0.25mm; pluggable cycles＞500; thermal resistance 0.7℃・cm²/W@10psi‑70℃ / 0.5℃・cm²/W@40psi‑70℃.
- What are ordering specifications and storage conditions?
Supplied in sheet form, custom cut‑parts available. Sealed store at 0‑35℃, ≤65% RH, shelf‑life 12 months. Refer to MSDS (SDS) for safety instructions.
