Thermally conductive insulator：T-Mask 350
3.5W/mK Thermally Conductive Insulator T-Mask 350
- Thermal Conductivity: 3.5W/m-K
- High insulation, breakdown voltage >4 kV
- Good resistant to tear, cut-through and puncture
- Ultra low thermal resistance 0.33°C·in2/W @40psi
- Easy to die cut and install
- Outstanding reliability
- Single side adhesive is available
- Datasheet
What is the Thermally Conductive Insulator T-Mask 350 ?
Techinno T-Mask 350 is silicone based thermally conductive electrical insulator pad, filled with boron nitride and alumina powder. The thermal conductivity is 3.5W/m-K. It has glass fiber as reinforced carrier for protecting the pad from tear, cut-through and puncture. It is suitable for using between high power semi-conductor component and heat sink, play the role of thermal conductive and electrical insulation. T-Mask 350 is smooth and compliance, and easy to achieve very low interficial thermal resistance under low mounting stress condition. Meanwhile, it keeps good electrical insulation performance as well.T-Mask 350 can be provided with single side adhesive as requested.
What are the main application scenarios for T-Mask 350?
The typical applications of Thermally Conductive Insulator T-Mask 350
Battery switch modules
Automotive control units
General HV surface
Motor control units

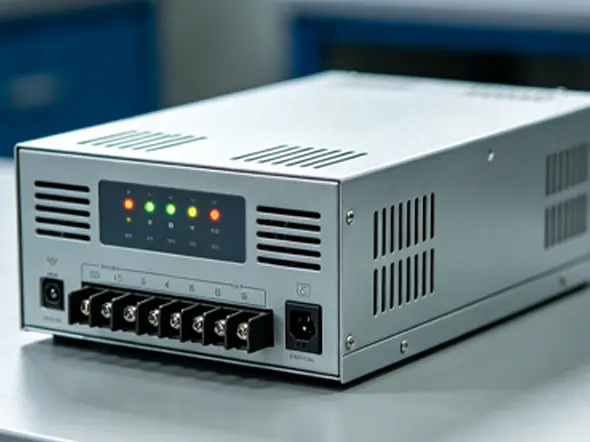

Power conversion equipment
MOSFETs and IGBTs
