Thermally Conductive Gels Model：Fill-Gel 450
4.5W/mK Thermally Conductive Gel: Fill-Gel 450
- Thermal Conductivity: 4.5W/m-K
- No post cure, easily dispensable and printable
- Good surface wetting and low stress
- High reliability and thermal stability
- No pump-out, no crack/slide at thermal cycling and vibration environment
- Datasheet
What is the Thermally Conductive Gel Fill-Gel 450?

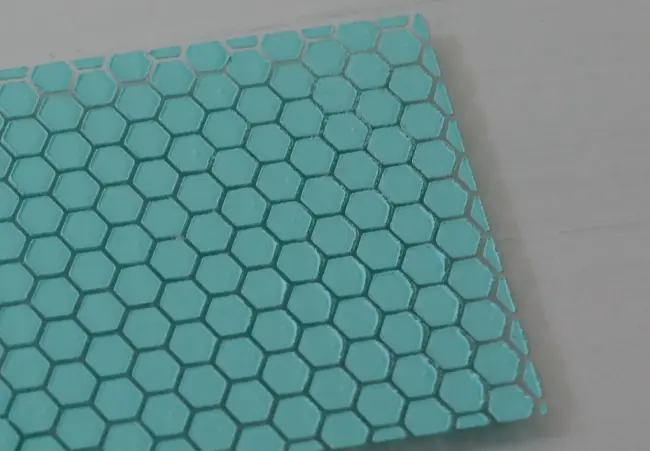

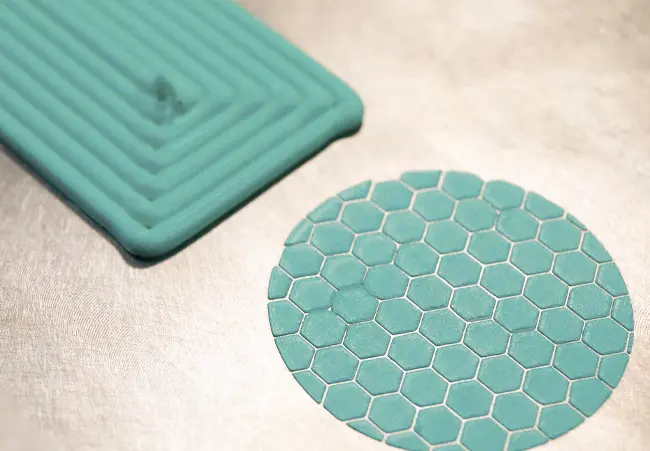

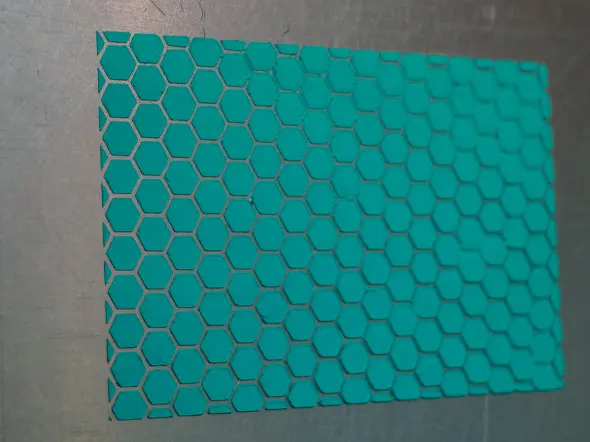

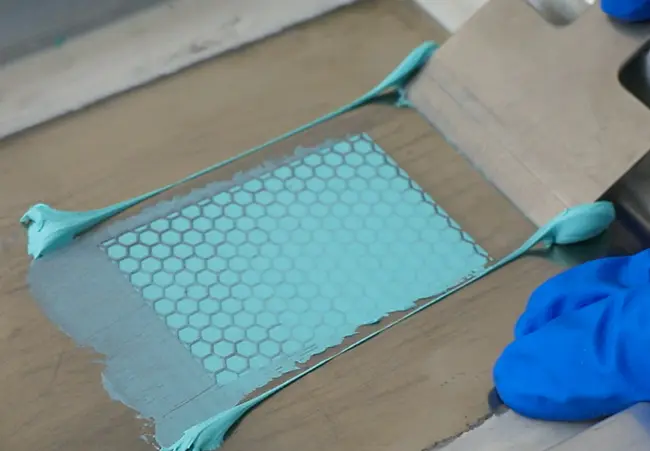

Fill-Gel 450 is a single-part and fully cured silicone gel, requiring no mixing or curing. Based on its high thixotropy and flexibility, Fill-Gel 450 is an ideal type of material for filling gaps of different heights under lower pressure, and suitable for the scene where multiple heating components share one heat sink. The unique formula achieves minimal compression stress on components while also yielding optimized surface wetting and lower thermal resistance. Fill-Gel 450 has high thermal conductivity of 4.5W/m-K. The cross-linked gel structure provides superior long term reliability over conventional greases in harsh temperature cycling and shock & vibration. The material can be applied by automatic dispensing or stencil printing, and suitable for rework and field repair situation.
What are the main application scenarios for Fill-Gel 450?
The typical applications of Thermally Conductive Gel Fill-Gel 450

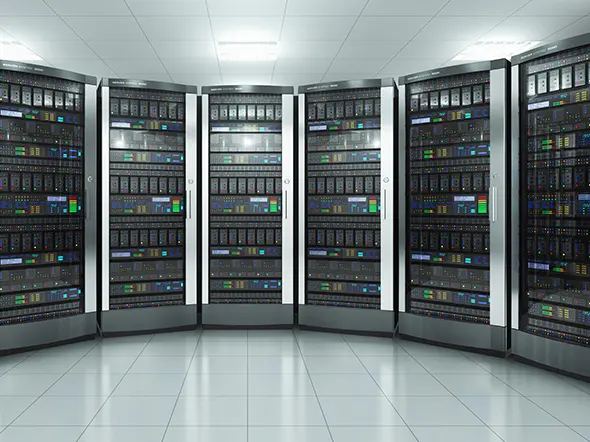

Data center, miner, server, switch, optical module
LED lighting, IGBT, automotive parts
Smart terminals, mobile phone, tablet computer
Communication equipment
Memory module
